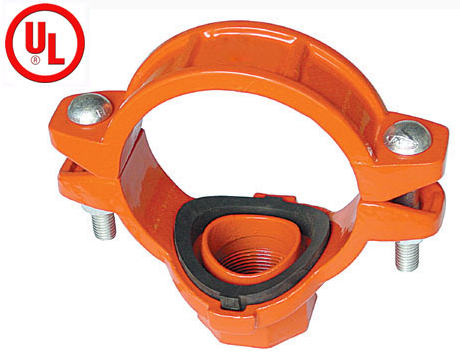

UL FM Mechanical tee grooved pipe fittings
Fire Protection Valves--Grooved Piping System
| Mechanical Tee (grooved) | |||||||
| Nominal Size mm/in | Pipe O.D mm/in | Working Pressure PSI/MPa | Dimensions mm/in | Hole cuting dimensions | |||
| Ø | A | B | C | mm/in | |||
|
50*32 2*1¼ |
60.3*42.4 2.375*1.669 |
300 2.07 |
78 3.071 |
115 4.527 |
68 2.677 |
74 2.913 |
46 1.8 |
|
65*40 2½*1½ |
73*48.3 2.87*1.900 |
300 2.07 |
96 3.78 |
138 5.433 |
77 3.031 |
84 3.307 |
51 2 |
|
80*32 3*1¼ |
88.9*42.4 3.500*1.669 |
300 2.07 |
112 4.409 |
150 5.906 |
85 3.346 |
84 3.307 |
51 2 |
|
80*40 3*1½ |
88.9*48.3 3.500*1.900 |
300 2.07 |
112 4.409 |
150 5.906 |
85 3.346 |
84 3.307 |
51 2 |
|
100*65 4*2½ |
114.3*73 4.500*2.874 |
300 2.07 |
140 5.512 |
176 6.929 |
100 3.937 |
114 4.488 |
70 2.75 |
|
100*80 4*3 |
114.3*88.9 4.500*3.500 |
300 2.07 |
140 5.512 |
176 6.929 |
100 3.937 |
134 5.276 |
89 3.5 |
|
125*50 5.5OD*2 |
139.7*60.3 5.500*2.375 |
300 2.07 |
166 6.535 |
215 8.465 |
113 4.448 |
107 4.213 |
64 2.5 |
|
125*65 5.5OD*3OD |
139.7*76.1 5.500*3 |
300 2.07 |
166 6.535 |
215 8.465 |
113 4.448 |
117 4.606 |
70 2.75 |
|
150*100 6.5OD*4 |
165.1*114.3 6.500*4.500 |
300 2.07 |
192 7.559 |
241 9.488 |
130 5.118 |
160 6.299 |
114 4.5 |
|
150*32 6*1¼ |
168.3*42.4 6.625*1.669 |
300 2.07 |
194 7.638 |
243 9.567 |
126 4.961 |
92 3.622 |
51 2 |
|
150*40 6*1½ |
168.3*48.3 6.625*1.900 |
300 2.07 |
194 7.638 |
243 9.567 |
126 4.961 |
92 3.622 |
51 2 |
|
200*80 8*3 |
219.1*88.9 8.625*3.500 |
300 2.07 |
250 9.843 |
305 12.007 |
155 6.102 |
134 5.276 |
89 3.5 |
|
200*100 8*4 |
219.1*114.3 8.625*4.500 |
300 2.07 |
250 9.843 |
310 12.205 |
160 6.299 |
160 6.299 |
114 4.5 |
